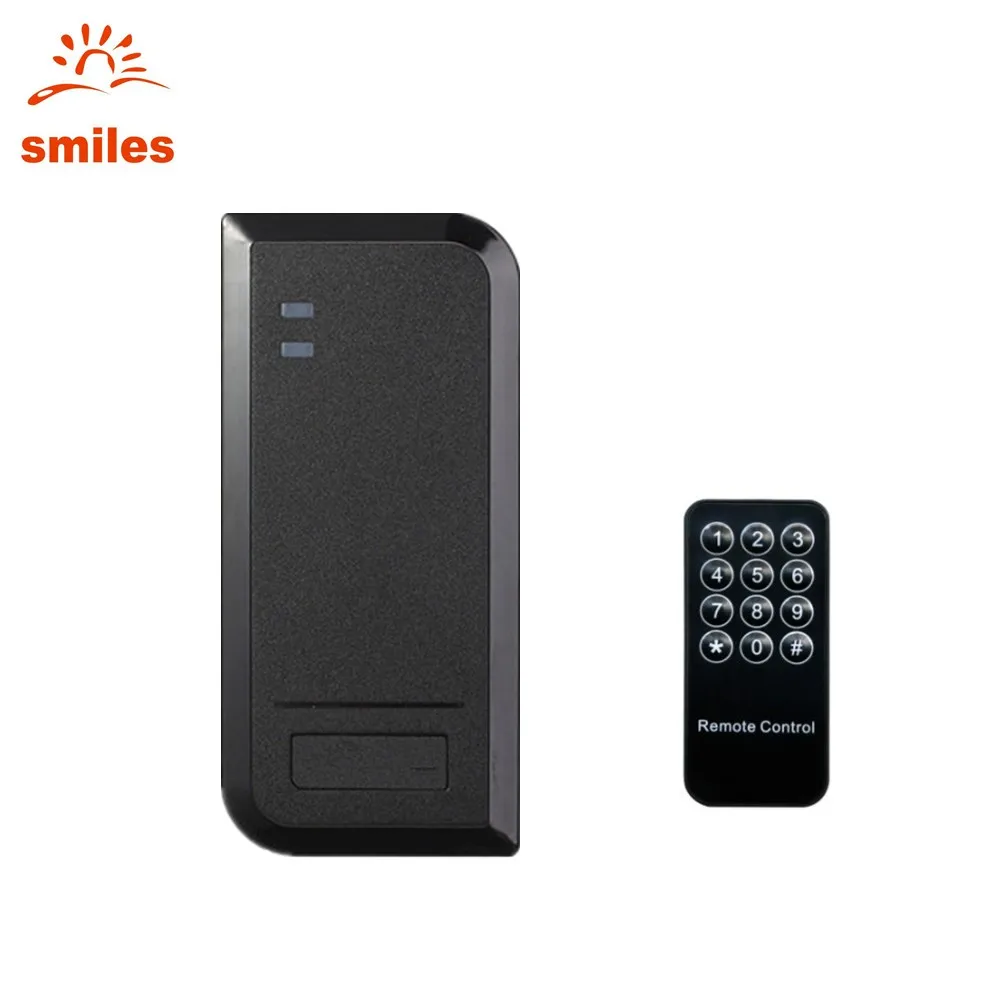

IP66 Waterproof Wiegand Access Control System Support Remote Controller and RFID Card Reader

  • 10 - 199 Sets
    $14.80
  • 200 - 499 Sets
    $14.50
  • >=500 Sets
    $13.50
Type:
access control lift access control elevator access control door access control reader
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
S003
User Capacity:
2000 pcs
Proximity Card Reader:
EM&HID
Waterproof degree:
IP66
Operating Voltage:
9~18V DC
Wiring Connections:
Relay Output, Exit Button
Dimensions:
L103* W48 * H20 (mm)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Descripition
Specification
 Product Name
Proximity Entry Stand-alone Access Control
User Capacity Card
2000 EM card & HID card
Wiring Connections
Relay Output, Exit Button
Waterproof degree
IP66
Relay
NO, NC, Common
Operating Temperature
-40℃ ~60℃

Features


Waterproof, conform to IP66

Read 125KHz EM&HID card

One programmable relay operation

Pulse mode, Latch mode

Remote infrared programmer

2000 users

Card block enrolment

Tri-colour LED status display

Built in light dependent resistor (LDR) for anti tamper

Buzzer for audible or silent mode

Low temperature resistance(-40℃)

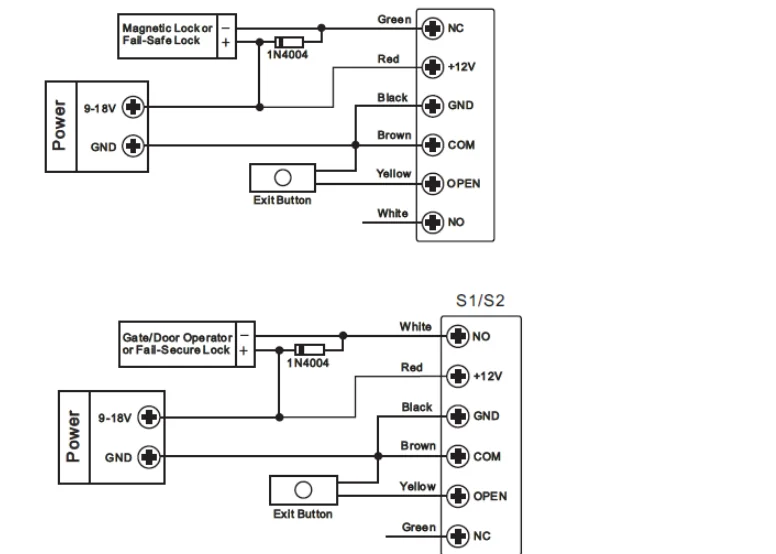

Wiring

Colour Function Notes

Red Power + 9~18 Votes DC Regulated Power Input

Black GND Ground

White NO Normally Open Relay Output

Brown COM Common Connection for Relay Output

Green NC Normally closed Relay Output

Yellow OPEN Request to Exit input(REX)



Installation


Remove the back cover from the unit

Drill 2 holes(A,C) on the wall for the screws and one hole for the cable

Knock the supplied rubber bungs to the screw holes(A,C)

Fix the back cover firmly on the wall with 4 flat head screws

Thread the cable through the cable hole(B)

Attach the unit to the back cover

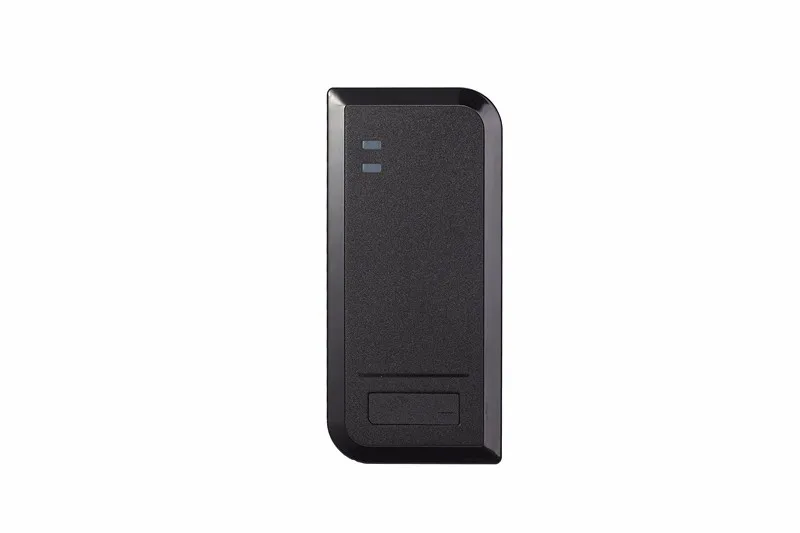

Detailed Images
Packing & Delivery

Carton Box

Package Weight:   0.15kg
Package Size:     102MM*48MM*20MM






Delivery Terms: Within 3 Days

Trade Terms: FOB Shenzhen

Our Service
Warranty
One  year, long life maintaince
Technical Support
Provide online training and technology support through Mail, Phone, Whatsapp, Skype etc.
Inquiry response
Customers are guaranteed to get the response within Half an hour upon receipt the inquiry.
Customized
OEM can be accepted
