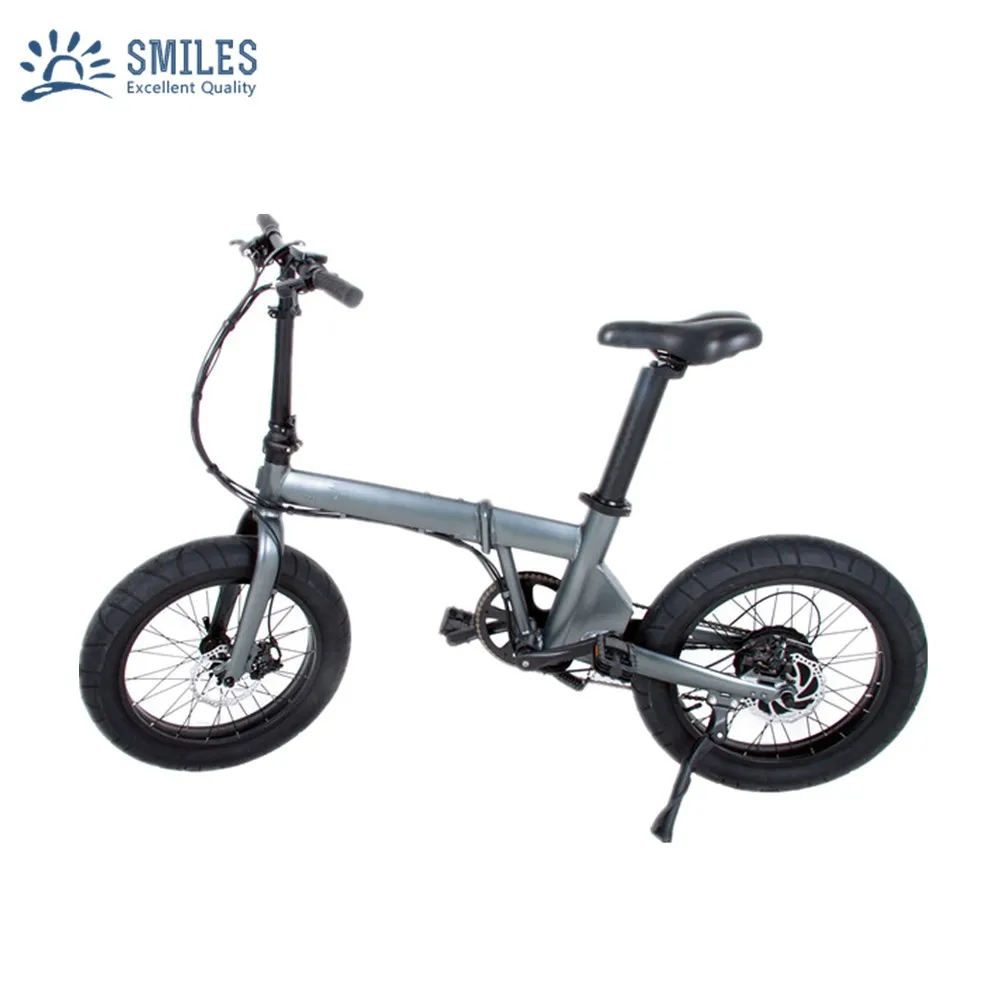

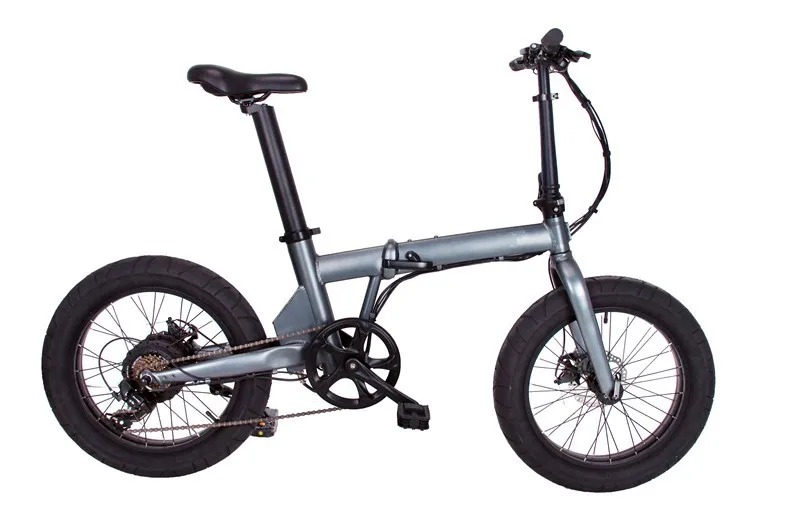

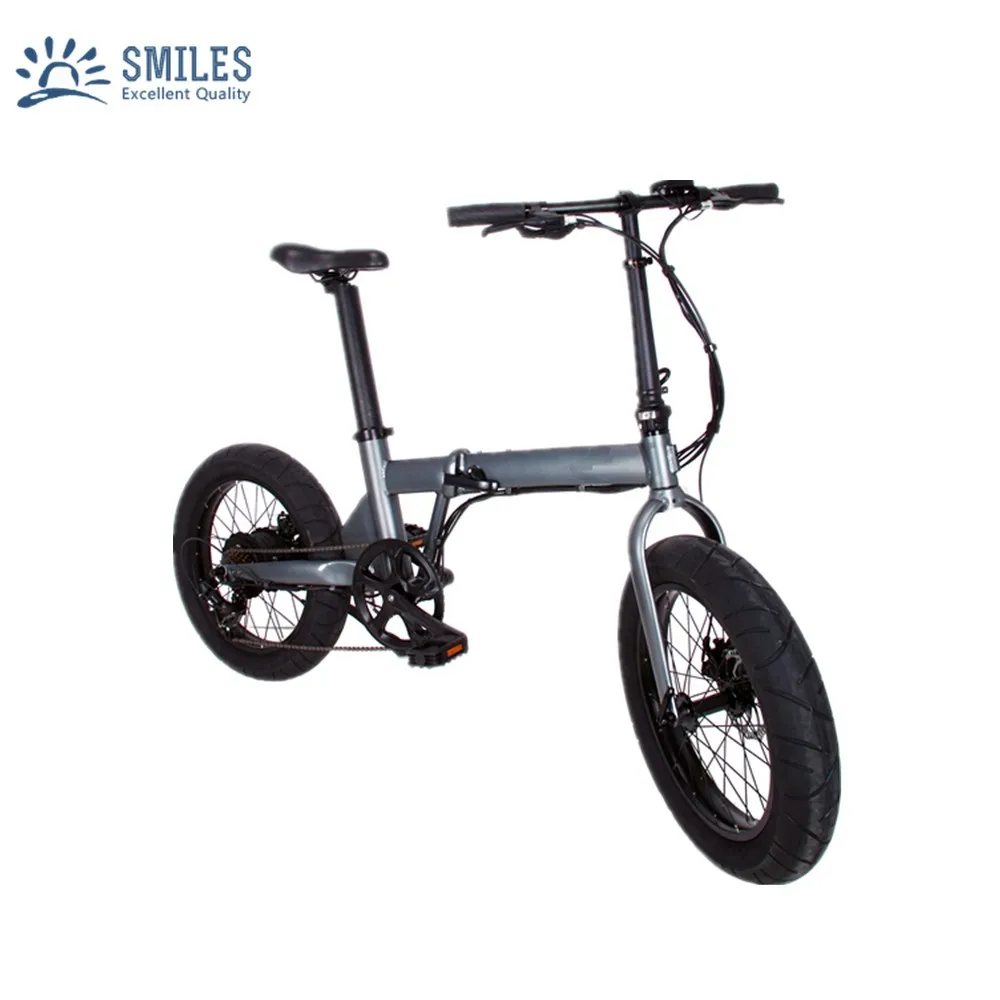

LCD Display 20 inch Flat Tire Electric Bike/Foldable E Bicycle For Adults

FOB Reference Price:Get Latest Price
  • 1 - 49 Sets
    $695.00
  • 50 - 99 Sets
    $665.00
  • >=100 Sets
    $635.00
Report Suspicious Activity
Overview
Quick Details
Wattage:
251 - 350w
Voltage:
36V
Power Supply:
Lithium Battery
Wheel Size:
20 Inch
Motor:
Brushless, :MXUS 350W geared
Certification:
CE
Frame Material:
Aluminum Alloy
Foldable:
Yes, Yes
Max Speed:
26KM/H
Range per Power:
31 - 60 km
Place of Origin:
China (Mainland)
Brand Name:
OEM
Model Number:
EB03
Material:
aluminium alloy
Tire diameter:
20 inch
Range:
PAS>65KM
Standard load:
150KG
Battery type:
Lithium-ion
Battery capacity:
36V 10.4Ah
Size:
1680*590*1120mm
Charge time:
3 Hs
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton box
Port
Shenzhen
Lead Time :
About 2 days
Product Descripition


Features


Size: 1680*590*1120mm                                                                   Folded size:930*480*700mm

Net weight: 23kg                                                                                   Range: PAS>65KM

Standard load: 150KG                                                                          Top speed: 28KM/H

Motor :MXUS 350W geared  brushless hub motor                         Max torque: 60N.m

Tire: INNOVA 20*4.25                                                                          Brake: NUTT 160mm disc brake

Color :red black white                                                                       Battery: Lithium-ion

Battery capacity: 36V 10.4Ah                                                             Noise : ≤62db(A)

Rated output power: 350W                                                               Motor efficiency: ≥80%

Rated RPM: 400r/min                                                                       Rated voltage: 36V

Wheel base: 1067mm                                                                      Overcurrent: 12±1A

Kwh:≤1.2Kw.h                                                                                Ride system: 5 levelPAS+cruise

Frame: 20 inch 6061 Al-Alloy                                                          Front fork: 6061 Al-Alloy

Rim: 20inch Al-Alloy 12G36H                                                        Chain wheel: Prowheel 52T

Fly wheel: Shimano14-28T                                                            Derailleur: Shimano 7 speed

Rear hub: Sigma Al-Alloy                                                               Chian: KMC

Handle bar:EVA                                                                                Display: Kunteng LCD

Controller: kungteng FOC                                                              Brake lever: Wuxing Al-Alloy

Saddle: KNUS                                                                                  Pedal: foldable pedal

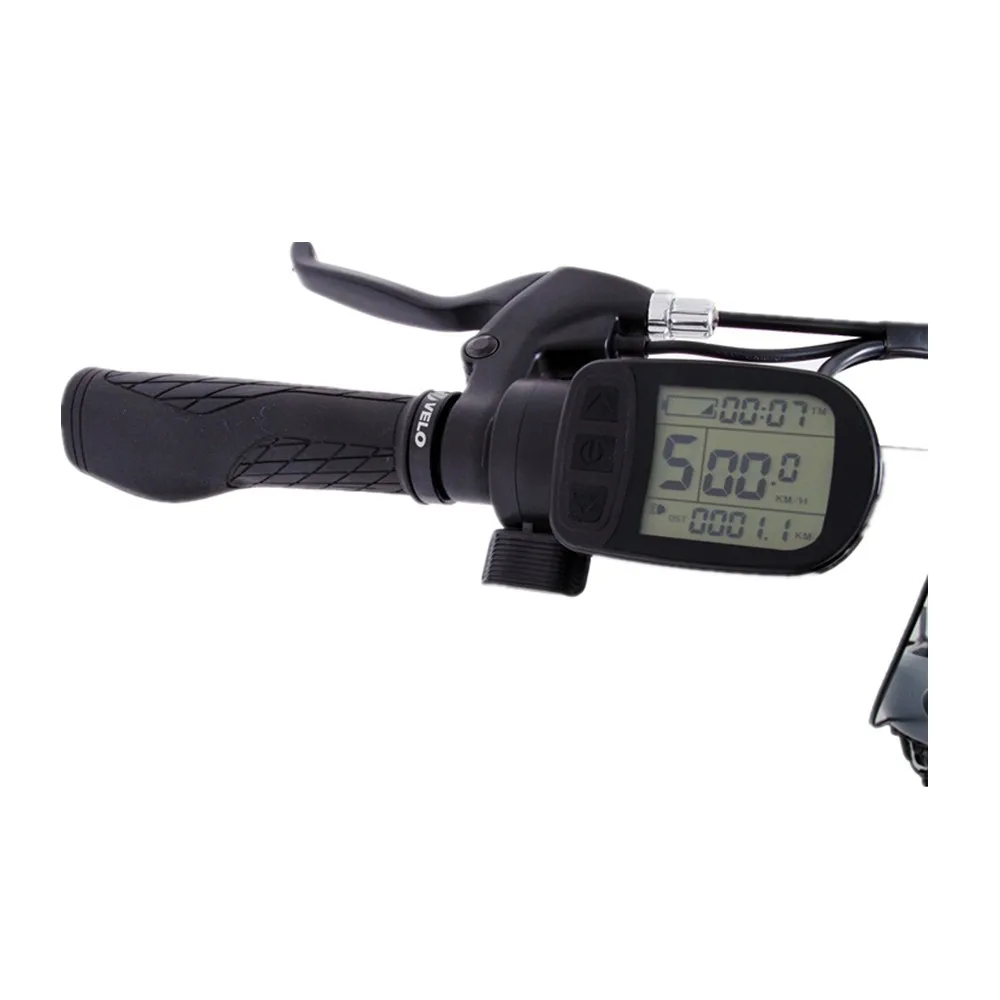

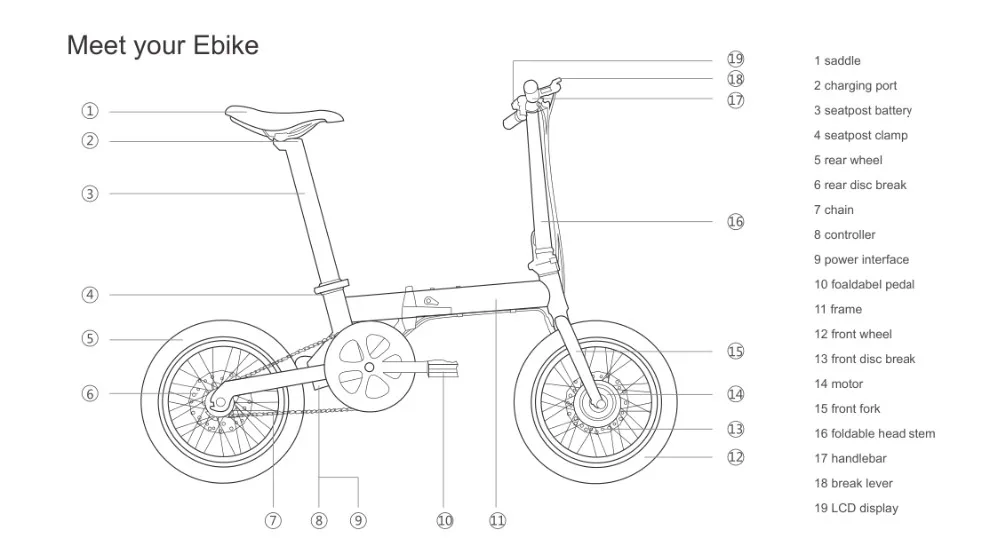

Operate your Ebike

1. Press&hold power button for 3 sec,LCD shows sceen A,data shows as :sigle riding time- PAS class-speed-single range;
2. Press power button,LCD Shows sceen B,data shows as:total riding time-PAS class –Average speed-total range;
3. Press power button twice,LCD shows sceen C,data shows as:total riding time-max speed-voltage
4. Slide mode:press&hold DOWN button till flicker,your Ebike will slide at a fixed speed of 6KM/H,release to quit.
5. Cruise mode:ride your Ebike to your wanted speed (must be over 7KM/H) ,then press&hold DOWN button for 3 sec to enter cruise mode, take break or press any button to quit.
6. LCD backlight:press&hold UP button to turn on backlight,press&hold UP button again to turn off.
7. PAS mode:press UP or DOWN button to choose PAS classes from 0~5.



Detailed Images
Packing & Delivery

Carton Box


 Dimension: 1680*590*1120mm


Net Weight:  23kg








Delivery Terms: Within 3 Days

Trade Terms: FOB Shenzhen

Our Service
Warranty
One  year, long life maintaince
Technical Support
Provide online training and technology support through Mail, Phone, Whatsapp, Skype etc.
Inquiry response
Customers are guaranteed to get the response within Half an hour upon receipt the inquiry.
Customized
OEM can be accepted

Related Products

Fingerprint door lock


Access Control System


Electronics




Our Company

                                                                    Company Introduction

Shenzhen Smiles Smart Technology Co. Limited specialized in R&D, manufacture & sales of fingerprint door lock and access control system. We also provide electronics, such as sports action camera,car charger, wireless charger, travel adapter, hand spinner. Under the guideline "Excellent Quality, Perfect Service", Smiles is always eager to make progress. Our products have passed international certificate approvals, and have been exported to many countries.

OEM and ODM requests are all welcome.
We keep on working! We keep on growing! We need your cooperation!
Welcome to contact Smiles for the Distribution Partnership!

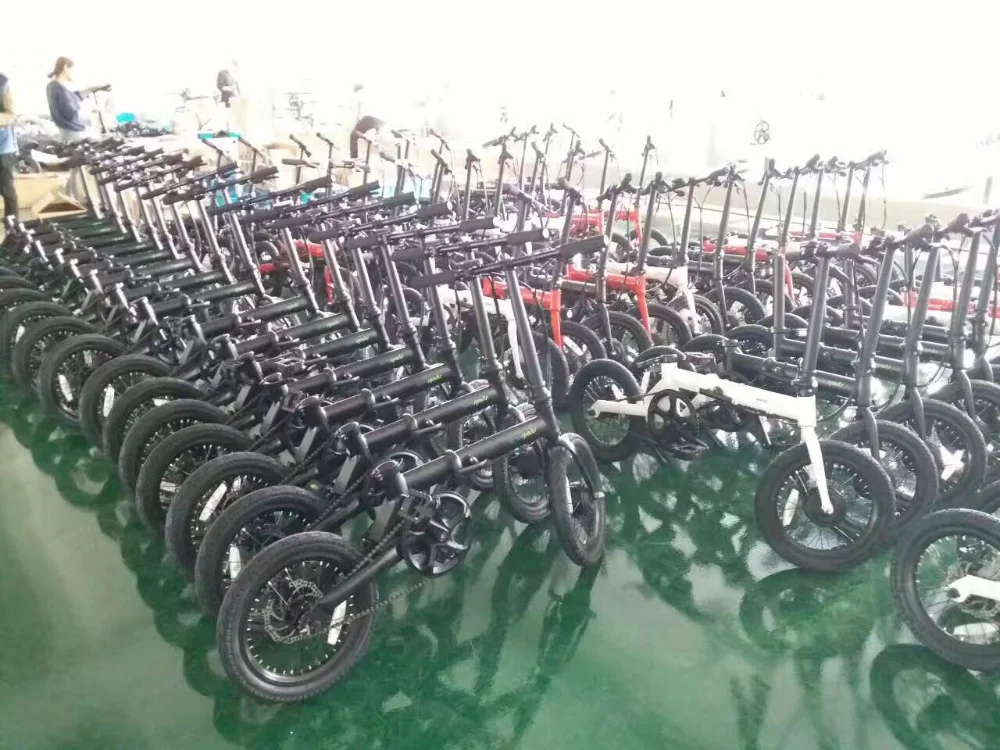

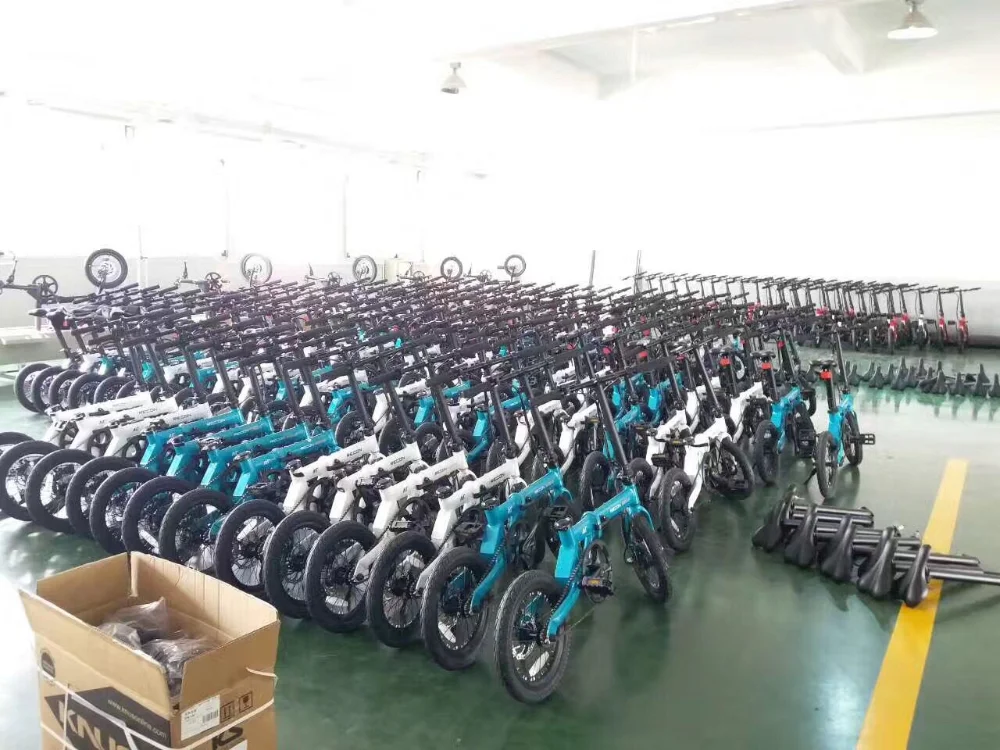

Factory   Show
